  • SCHB-100S Closed-loop Hall effect current sensor

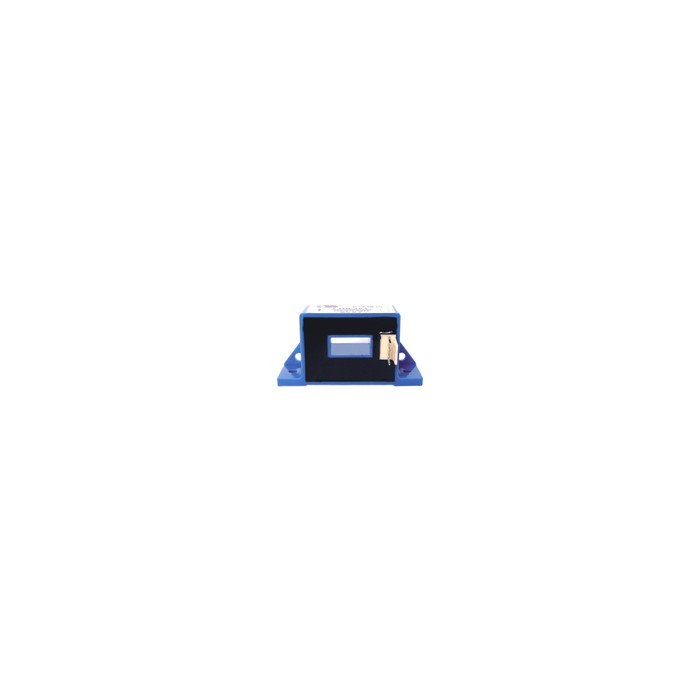

SCHB-100S Closed-loop Hall effect current sensor

Name/Model:   Closed-loop Hall current sensor
  Rated input Parameter:   100A DC, AC or pulsed current


Sensor Mod.

CHB-100S

Description

The SENSOR Module CHB-100S is a closed loop Hall current sensor to measure 100A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits.



Closed-loop Hall Current Sensor:

Type

Nominal current

Output current

Accuracy

Supply voltage

Aperture

IN（A）

IM（mA）

X（%）

Vc（V）

mm

CHB-100S

100

100

±0.8%

±12…18

φ15



Specifications:

Principle

Closed loop Hall effect principle

Input current

100A（DC、AC、Pulsed current）

Output current

100mA

Turns ratio

1:1000

Frequency

DC~100KHz

Accuracy

±0.8%

Response time

<1μS

Linearity

<0.1%

Supply voltage

±12V…18V（±5%）

Consumption

28mA+IM（Output current）

Isolation voltage

Between primary and secondary circuit: 6KV RMS/50Hz/1min.

Operating temp.

0…+70℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,



industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

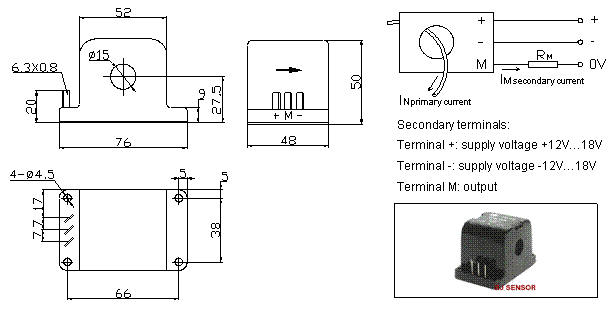

Dimensions(mm) & Connection:

CHP100S



Typical Applications:



 CHP100S

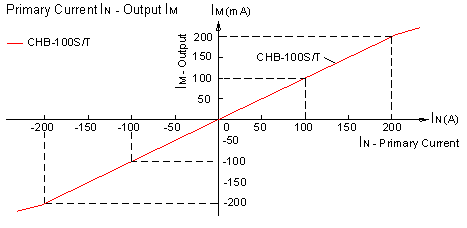

Primary current IN and Output IM:

It is isolated between the primary current IN and the secondary output current IM.

The linearity is better than 0.1%.



Type: CHB-CHB-100S

Nominal current: IN=100A

Output current: IM=100mA

Supply voltage: Vc=±15V

Measuring resistance: RM=0Ω
