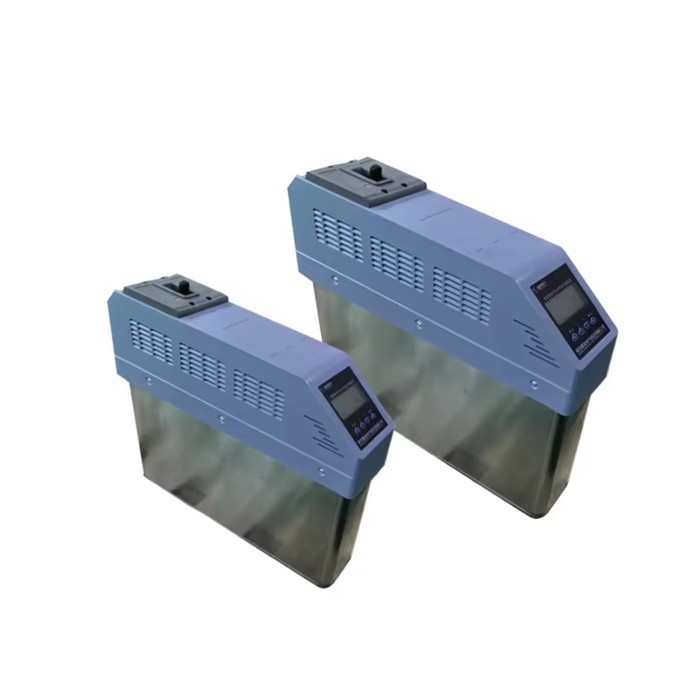

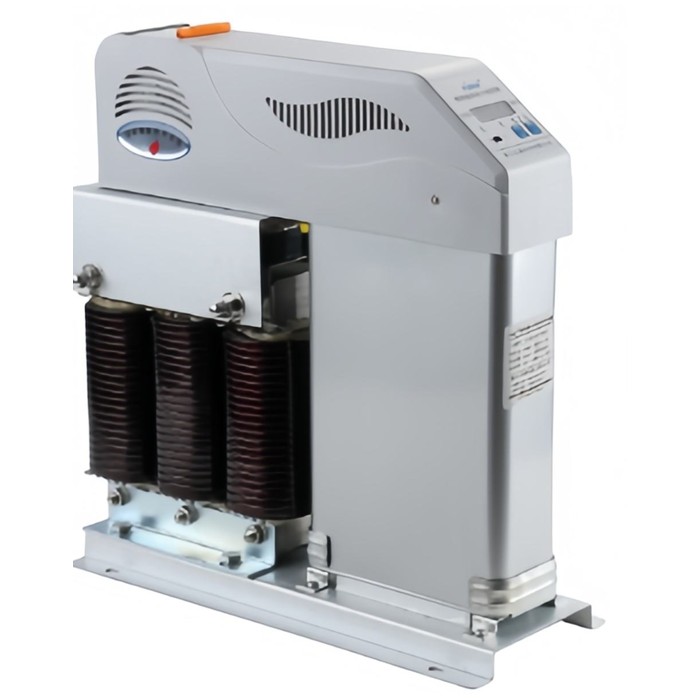

Intelligent Low-Voltage Reactive Power Compensation Device Energy-Saving Smart Control Industrial Stability

Name

ntelligent Low-Voltage Reactive Power Compensation Device Energy-Saving Smart Control Industrial Stability

zntarjason@gmail.com

Minor customization

Drawing-based customization

Sample-based customization

Full customization

Rated Voltage	400 V, 230 V, 220V/380V (3P4W system supported)	Frequency	50 Hz, 60 Hz
Type	Iron-Core Reactor	Capacity	10kar
Insulation Class	H	Model Number	TDS
Capacity Range	5kVar~40kVar (customizable per phase)	Communication	Dual RS485 ports, Modbus protocol
Protection	Overvoltage, Undervoltage, Overcurrent, Overtemperature,	Indicators	LED status lights (Red=On, Green=Off)
Installation	Cabinet-mounted (IP20), DIN rail compatible	Operating Temp	-25.C to +55.C
